Velociraptor Deployment

## Collecting files

* Being able to efficiently and quickly collect and preserve evidence
  is important:

* Capture machine state at a point in time.
    * Collect files for further analysis by forensic tools.

---

## Windows.KapeFiles.Targets

* This is a popular artifact for mass file collection.
* It does no analysis but just collects a bunch of files.
* Uses low level NTFS accessor
* More "Traditional" DFIR.

---

## Exercise: Use Windows.KapeFiles.Targets

* Simply select the target to collect.
* Many targets automatically include sub-targets.

---

## Exporting collections from GUI

* You can use the GUI to export the collection
  1. Can specify a password for export
  2. Can re-import the collection into another server (archive)

---

## Resource control

* Collecting large artifacts can generate huge amount of data
* Because Velociraptor is so fast and efficient it is easy to
  accidentally overwhelm networks

* Math is a harsh mistress:
   * Collecting 100Mb  from 10,000 endpoints = 1Tb
   * e.g. $MFT is usually around 300-400Mb

---

### Velociraptor has your back!

# Offline collections

## Digging deeper without a server

---

## Why Offline collection?

* I want to collect artifacts from an endpoint
* But Velociraptor is not installed on the endpoint!
* Or the endpoint is inaccessible to the Velociraptor server (no
  egress, firewalls etc).

But Velociraptor is just a VQL engine!  It does not really need a
server anyway

---

## Velociraptor Artifacts

* Velociraptor is essentially a VQL engine.
* VQL queries are encapsulated inside an Artifact - a structured yaml
  file describing the query’s purpose and parameters.
* We have seen how to collect artifacts remotely using the
  client/server model - however we can also collect artifacts locally

---

## Why Offline collection?

* I want to collect artifacts from an endpoint
* But Velociraptor is not installed on the endpoint!
* Or the endpoint is inaccessible to the Velociraptor server (no egress, firewalls etc).
* But Velociraptor is just a VQL engine!  It does not really need a server anyway

---

## Create an offline collector

![](offline_builder.png)

</div>
<div class="col">

#### Let's select two artifacts to collect:

1. Windows.KapeFiles.Targets
    * Select the Basic Collection to get many forensic artifacts
2. SQLiteHunter: https://github.com/Velocidex/SQLiteHunter

</div>

---

### Selecting the Windows.KapeFiles.Targets artifact

![](offline_kape_targets.png)

---

### Configuring the collector to encrypt output

![](offline_configure.png)

---

### Downloading the prepared binary

![](offline_download_binary.png)

---

## Offline collector binaries

* Preconfigured to collect the required artifacts
* No user interaction needed - just run with no command line args
* Prepare armoured Zip file with all the results in them

---

### Acquire data!

![](offline_acquire.png)

---

## Acquired file is encrypted

* Due to limitations in the Zip format, file names can not be encrypted.
* Therefore, Velociraptor creates a second protected Zip file inside
  the outer container.
* Several encryption schemes supported:
    1. Regular password
    2. X509 - random password generated and encrypted with the server's certificate.
    3. GPG - random password generated and encrypted with the GPG public key.

---

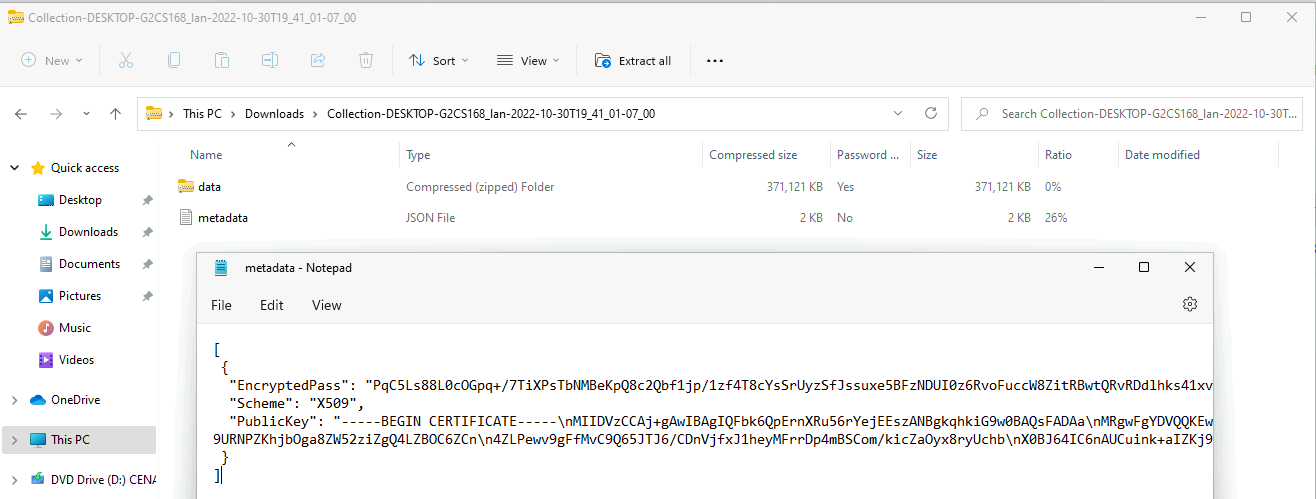

## Acquired file is encrypted

![](offline_encrypted.png)

---

## Importing into Velociraptor

* Velociraptor can automatically decrypted offline containers when
  importing.
* Use the Server.Utils.ImportCollection artifact to import collections
* The server uses its private key to unlock the container automatically.
* This preserves PII and confidential information in transit!

---

### Import the collection into the Velociraptor server

![](offline_import.png)

---

### Inspect the import process

![](offline_import_inspect.png)

---

### Inspect the collected data

![](offline_import_inspect_data.png)

---

## Protecting the collection file: Encryption
* For added protection, add a password to the zip file
* If we used a simple password it would be embedded in the collector
* Use an X509 scheme to generate a random password.

* Zip files do not password protect the directory listing - So
  Velociraptor creates a second zip file inside the password protected
  zip.

---

## Including third party binaries

* Sometimes we want to collect the output from other third party
  executables.
* Velociraptor can package dependent binaries together with the
  offline collector.
* Velociraptor can append a zip file to the end of the binary and
  adjust PE headers to ensure it can be properly signed.

---

## Take a memory image with winpmem

* We will shell out to winpmem to acquire the image. We will bring
  winpmem embedded in the collector binary.

---

## Importing collections into the GUI

* You can import an offline collection into the GUI using the
  `import_collection()` [VQL function](https://docs.velociraptor.app/vql_reference/server/import_collection/).
* Requires the collection ZIP to already be present on the server.
* Decrypts X509 encrypted collections automatically.

---

## Local collection considerations
* Local collection can be done well without a server and permanent
  agent installed.
* A disadvantage is that we do not get feedback of how the collection
  is going and how many resources are consumed.
* We really need to plan ahead what we want to collect and it is more
  difficult to pivot and dig deeper in response to findings.

## Uploading offline collections automatically

* Offline collections tend to be very large.
* This makes it difficult to transfer the collection back to the
  investigation team.
* Velociraptor offers a number of automated uploading mechanisms:
  1. SMB Upload (Windows Share)
  2. S3 or GCP uploads
  3. Azure storage service

---

## Configure SMB upload

* Best used in an on-premises network
  * Can use any system on the network to receive the file.
* Need to secure the upload directory:
  * Create a special uploader account
  * Only allow uploader account access to write files.
  * Prevent uploader account from reading files.

---

## Exercise: Preparing an SMB dropbox

* Sometimes it is easiest to configure an SMB directory to receive the
  offline collector.

* Follow the
  [instructions](https://docs.velociraptor.app/docs/offline_triage/remote_uploads/#smb-share)
  to configure an SMB drop box folder.

* Create offline collectors to upload to the folder.

---

## Step 1: Creating service account

* Need to create a new local user account to authenticate to the server.

![](local_user.png)

---

## Step 2: Share directory to new user

* Create a directory on the server to accept uploads
* Share the directory

---

## Step 3: Adjust ACLs

* Ensure the service account has limited permission on the NTFS level

---

## Step 4: Test ACLs using VQL

* You can use VQL from the server notebook to ensure the uploader account
   1. Can upload a test file to the SMB share
   2. Can not list or read any files on the SMB share.

```sql
LET SMB_CREDENTIALS <= dict(`192.168.1.112`="uploader:test!password")

SELECT upload_smb(accessor="data",
    file="Hello world",
    name="hello.txt",
    server_address="//192.168.1.112/uploads")
FROM scope()

SELECT *
FROM glob(globs="*",
    root="//192.168.1.112/uploads",
    accessor="smb")
```

---

## Step 5: Creating the SMB collector

* Once we confirm the SMB share is properly configured, we can create
  the collector.

---

# Collecting to AWS Buckets

---

## Bucket credentials

* On AWS bucket access is given by user policies
* Basic entities:
  1. A Bucket - contains upload collections
  2. A User - a service account that assumes an identity.
      * The user has credentials (Key and Secret)
      * One or more policy objects associated with the user.
  3. A Policy
      * Specifies permissions to various actions on APIs.

---

## Creating a bucket

* Using the AWS console create a bucket with default permissions
* The most important parameters are the region and the bucket name

![](bucket.png)

---

## Creating a User

* In the IAM section of the console create a User account
* Create a dedicated user account that will only be allowed to upload.

![](uploader_account.png)

---

## Creating security credentials

* Since this account needs to log in automatically we need to get an access key for it.
* Under the `Security credentials` tab find the `Access Keys` section and create a new key.
* Select `Application running outside AWS` as the type of the key.
* You can now retrieve the key from the console. Make sure to record
  it because it wont be shown again.

---

### Creating security credentials

![](retrieving_access_key.png)

---

## Creating a policy

* You can attach the policy JSON object to the user account.
* The only permission needed is the `PutObjet` permission on the
  bucket resource.

```json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": "s3:PutObject",
            "Resource": "arn:aws:s3:::upload.velocidex.com/*"
        }
    ]
}
```

---

## Testing the upload credentials

* Gather the following pieces of information
   1. Key ID
   2. Key Secret
   3. Bucket name and region

* Add these to the collector configuration.

---

## Testing the upload credentials

![](testing_s3_upload.png)

---

## Viewing the contents of the bucket

* While the uploader has no credentials we can create a second service
  account with full access to the bucket.

* This allows the server to view files in the bucket as soon as they
  are uploaded!

* We will use this in the next section to automate post processing.

---

## Full access policy

* To give the service account full access use the following policy

```json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor1",
            "Effect": "Allow",
            "Action": "s3:*",
            "Resource": [
                "arn:aws:s3:::upload.velocidex.com/*",
                "arn:aws:s3:::upload.velocidex.com"
            ]
        }
    ]
}
```

---

## Testing Full access policy

* Using the credentials for the full access s3 service account we can read the bucket.

```sql
LET S3_CREDENTIALS<=dict(
  region="ap-southeast-2",
  credentials_key='CRED_KEY',
  credentials_secret='CRED_SECRET')

SELECT * FROM glob(accessor="s3", globs="**", root="/upload.velocidex.com/")

```

## Review And Summary

* Collecting data from the endpoint is a balancing act:
   1. Collecting too much data makes it difficult to post process
   2. Collecting too little means frequent re-collections and pivoting.

* In Client/Server model it is easy to hunt for new data quickly
   * It is better to be more targeted and answer more specific questions
   * Limit the total data returned

* We saw to to collect uploads using SMB and S3
   * More methods are available (SFTP, Azure etc).
   * The basic principal is the same: Lock down the service account so
     it can only upload

---

## Local collection considerations

* Local collection can be done well without a server and permanent
  agent installed.

* A disadvantage is that we do not get feedback of how the collection
  is going and how many resources are consumed.

* We really need to plan ahead what we want to collect and it is more
  difficult to pivot and dig deeper in response to findings.
