## Searching for files - glob()

* One of the most common operations in DFIR is searching for files
  efficiently.
* Velociraptor has the `glob()` plugin to search for files using a
  glob expression.
* Glob expressions use wildcards to search the filesystem for matches.
    * Paths are separated by / or \ into components
    * A `*` is a wildcard match (e.g. `*.exe` matches all files ending
      with .exe)
    * Alternatives are expressed as comma separated strings in `{}`
      e.g. `*.{exe,dll,sys}`
    * A `**` denotes recursive search. `e.g. C:\Users\**\*.exe`

---

## Exercise: Search for exe

* Search user’s home directory for binaries.

```sql
SELECT * FROM glob(globs='C:\\Users\\**\\*.exe')
```

Note the need to escape `\` in strings. You can use `/` instead and
specify multiple globs to search all at the same time:

```sql
SELECT * FROM glob(globs=['C:/Users/**/*.exe',
                          'C:/Users/**/*.dll'])
```

---

## Filesystem accessors

* Glob is a very useful concept to search hierarchical trees
* Velociraptor supports direct access to many different such trees via accessors (essentially FS drivers):

* `file` - uses OS APIs to access files.
    * `ntfs` - uses raw NTFS parsing to access low level files
    * `reg` - uses OS APIs to access the windows registry
    * `raw_reg` - search in a registry hive
    * `zip` - Search inside zip files

---

## The registry accessor

* Uses the OS API to access the registry
* Top level consists of the major hives (`HKEY_USERS` etc)
* Values appear as files, Keys appear as directories
* Default value is named “@”
* Value content is included inside the Data attribute
* Can escape components with / using quotes

`HKLM\Microsoft\Windows\"http://www.microsoft.com/"`

---

## The registry accessor

* The `OSPath` column includes the key (as directory) and the value (as a
  filename) in the path.

* The Registry accessor also includes value contents if they are small
  enough in the `Data` column.

---

## Exercise - RunOnce artifact

* Write an artifact which hashes every binary mentioned in Run/RunOnce
  keys.

* “Run and RunOnce registry keys cause programs to run each time that
  a user logs on.”

*  https://learn.microsoft.com/en-us/windows/win32/setupapi/run-and-runonce-registry-keys

* You can test this by adding a key

```text
   REG ADD "HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run" /v Notepad /t REG_SZ /d "C:\Windows\notepad.exe"
   ```

* Can you think of limitations?

---

## Exercise - RunOnce artifact

```
LET RunGlob = '''HKCU\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\*'''

SELECT Name, Mtime, Data.value AS Data
FROM glob(globs=RunGlob, accessor="registry")
```

</div>

---

## Exercise: Hash all files provided in the globs

* Create an artifact that hashes files found by user provided globs.

* BONUS:
  * Support number of concurrent threads.
  * Accept a list of hashes and filter on those.

---

# Searching data

## Scanning file contents

---

## Searching data

* A powerful DFIR technique is searching bulk data for patterns
* Searching for CC data in process memory
* Searching for URLs in process memory
* Searching binaries for malware signatures
* Searching registry for patterns

Bulk searching helps to identify evidence without needing to parse
file formats

---

## YARA - The swiss army knife

* YARA is a powerful keyword scanner
* Uses rules designed to identify binary patterns in bulk data
* YARA is optimized to scan for many rules simultaneously.
* Velociraptor supports YARA scanning of bulk data (via accessors) and memory.

`yara()` and `proc_yara()`

---

## YARA rules

Yara rules has a special domain specific language

```yara
rule X {
   strings:
       $a = “hello” nocase
       $b = “Goodbye” wide
       $c = /[a-z]{5,10}[0-9]/i

condition:
       $a and ($b or $c)
}
```

---

## Exercise: drive by download

* You suspect a user was compromised by a drive by download (i.e. they
  clicked and downloaded malware delivered by mail, ads etc).
* You think the user used the Edge browser but you have no idea of the
  internal structure of the browser cache/history etc.
* Write an artifact to extract potential URLs from the Edge browser
  directory (also where is it?)

---

## Step 1: Figure out where to look

Looks like somewhere in `C:\Users\<name>\AppData\Local\Microsoft\Edge\**`

```
LET Globs = "C:/Users/Administrator/AppData/Local/Microsoft/Edge/**"

SELECT OSPath FROM glob(globs=Globs)
```

---

## Step 2: Recover URLs

* We don't exactly understand how Edge stores data but we know roughly
  what a URL is supposed to look like!

* Yara is our sledgehammer !

```
rule URL {
  strings: $a = /https?:\/\/[a-z0-9\/+&#:\?.-]+/i
  condition: any of them
}
```

---

## Step 3: Let’s do this!

```
LET Globs = "C:/Users/Administrator/AppData/Local/Microsoft/Edge/**"
LET URLRule = '''
rule URL {
  strings: $a = /https?:\/\/[a-z0-9\/+&#:\?.-]+/i
  condition: any of them
}
'''

SELECT *
FROM foreach(row={
   SELECT OSPath FROM glob(globs=Globs)
}, query={
   SELECT OSPath, String.Data AS Hit
   FROM yara(files=OSPath, rules=URLRule, number=10000000)
})
```

</div>

---

## YARA best practice

* You can get yara rules from many sources (threat intel, blog posts etc)
* YARA is really a first level triage tool:
    * Depending on signature many false positives expected
    * Some signatures are extremely specific so make a great signal
    * Try to collect additional context around the hits to eliminate
      false positives.
    * Yara scanning is relatively expensive! consider more targeted
      glob expressions and client side throttling since usually YARA
      scanning is not time critical.

---

## Uploading files

* Velociraptor can collect file data.
    * Over the network
    * Locally to a collection zip file.
    * Driven by VQL

The `upload()` VQL function copies a file using an accessor to the
relevant container

---

## Exercise: Upload Recent executables

* Collect all recent executables in users’ home directory

* Written in the past week

* Write your own VQL by combining `glob()` and `upload()`

```
LET Globs = "C:/Users/Administrator/**/*.exe"

SELECT Mtime, OSPath, upload(file=OSPath) AS Upload
FROM glob(globs=Globs)
WHERE Mtime > now() - 7 * 24 * 60 * 60
```

</div>

## NTFS Overview

* NTFS is the file system in all modern Windows operating systems.
* Feature packed with a design focused on storage optimization and resilience.
* NTFS implements Journalling to record metadata changes to track state and integrity of the file system.
* Allows for recovery after system crashes to avoid data loss
* File System objects referenced in a Master File Table (MFT)

---

## New Technology File System

* In NTFS, the Master File Table (MFT) is at the heart of the file
  system. A structured database that stores metadata entries for every
  file and folder.
* Every object gets an entry within the MFT. Each entry is usually
  1024 bytes long.  Contains a series of attributes that fully
  describe the object.

---

## MFT entries contain attributes

## File entry examples
* $STANDARD_INFORMATION
* $FILE_NAME (Windows long name)
* $FILE_NAME (short name)
* $DATA
* $DATA  (alternate data stream sometimes)

</div>
<div class="col">

## Folder entry examples
* $STANDARD_INFORMATION
* $FILE_NAME (Windows long name)
* $FILE_NAME (short name)
* $INDEX_ROOT
* $INDEX_ALLOCATION (sometimes)

</div>

---

## NTFS Analysis

Velociraptor offers a number of plugins to access detailed information
about NTFS:
* `parse_mft()`: parses each MFT entry and returns high level metadata
  about the entry - including reconstruct the full path of the entry
  by traversing parent MFT entries.
* `parse_ntfs()`: Given an MFT ID this function will display
  information about the various streams (e.g. `$DATA`, `$Filename`
  etc)
* `parse_ntfs_i30()`: This scans the `$i30` stream in directories to
  recover potentially deleted entries.

---

## Finding suspicious files

Parse the MFT using `Windows.NTFS.MFT`

* Common DFIR use case is finding files
    * File name
    * Path
    * File type
    * Content
* Velociraptor plugins
    * glob
    * parse_mft
    * yara
    * other content based plugins

---

## Windows.Forensics. FilenameSearch

* Apply yara on the MFT
    * fast yara
    * simple string based
    * filename / top level folder only
    * comma separated
* Crude and less control
* Verbose results

---

## Windows.NTFS.MFT

* Parses MFT
* Easy to use
* Filters
    * Path
    * File name
    * Drive
    * Time bounds
    * Size
* Performance optimised

</div>
<div class="col">

</div>
</div>

---

## Exercise - Generate test data

To automatically prep your machine run this script:
```powershell
### NTFS exercise setup

## 1. download some files to test various content and add ADS to simulate manual download from a browser

$downloads = (
    "https://live.sysinternals.com/PsExec64.exe",
    "https://live.sysinternals.com/procdump64.exe",
    "https://live.sysinternals.com/sdelete64.exe"
)

foreach ( $url in $downloads){
    "Downloading " + $Url
    $file = Split-Path $Url -Leaf
    $dest = "C:\PerfLogs\" +$file
    $ads =  "[ZoneTransfer]`r`nZoneId=3`r`nReferrerUrl=https://18.220.58.123/yolo/`r`nHostUrl=https://18.220.58.123/yolo/" + $file + "`r`n"

Remove-Item -Path $dest -force -ErrorAction SilentlyContinue
    Invoke-WebRequest -Uri $Url -OutFile $dest -UseBasicParsing
    Set-Content -Path $dest":Zone.Identifier" $ads
}
```

---

## More setup

```powershell
## 2.Create a PS1 file in staging folder (any text will do but this is powershell extension)
echo "Write-Host ‘this is totally a resident file’" > C:\Perflogs\test.ps1

## 3.Modify shortname on a file
fsutil file setshortname C:\PerfLogs\psexec64.exe fake.exe

## 4. Create a process dumpOpen calculator (calc.exe)
calc.exe ; start-sleep 2
C:\PerfLogs\procdump64.exe -accepteula -ma win32calc C:\PerfLogs\calc.dmp
get-process | where-object { $_.Name -like "*win32calc*" } | Stop-Process

## 5. Create a zip file in staging folder
Compress-Archive -Path C:\PerfLogs\* -DestinationPath C:\PerfLogs\exfil.zip -CompressionLevel Fastest

## 6. Delete dmp,zip and ps1 files - deleted file discovery is important for later!
Remove-Item -Path C:\PerfLogs\*.zip, C:\PerfLogs\*.dmp, C:\PerfLogs\*.ps1
```

Note:

* Download and copy to staging folder C:\PerfLogs\
    * https://live.sysinternals.com/procdump64.exe
    * https://live.sysinternals.com/sdelete64.exe
    * https://live.sysinternals.com/psexec64.exe
* Add ADS to simulate Mark of the Web

Create a PS1 file in staging folder (any text will do but this is powershell extension)
```
echo "Write-Host ‘this is totally a resident file’" > C:\Perflogs\test.ps1
```

Modify short name on a file
```
fsutil file setshortname C:\PerfLogs\psexec64.exe fake.exe
```

Create a process dump Open calculator (`calc.exe`)
```
C:\PerfLogs\procdump64.exe -accepteula -ma calc C:\PerfLogs\calc.dmp
```

Create a zip file in staging folder - open `C:\Perflogs in Explorer`
highlight and select: Send to > Compressed (zipped) folder.
Delete `dmp.zip` and `ps1` files - deleted file discovery is important for later!
```
Remove-Item -Path C:\PerfLogs\*.zip, C:\PerfLogs\*.dmp, C:\PerfLogs\*.ps1
```

---

## Exercise

* Find contents of `C:\Perflogs`
* Review metadata of objects
* Explore leveraging filters
    * to target specific files or file types
    * to find files limited to a time frame

* Can you find the deleted files?
    * You may get lucky and have an unallocated file show.
    * Try `Windows.Forensics.Usn` with filters looking for suspicious
      extensions in our staging location!

</div>
<div class="col">
  <img src="../../modules/ntfs_forensics/MFT_exercise1.png" style="bottom: inherit" class="inset" />
</div>
</div>

---

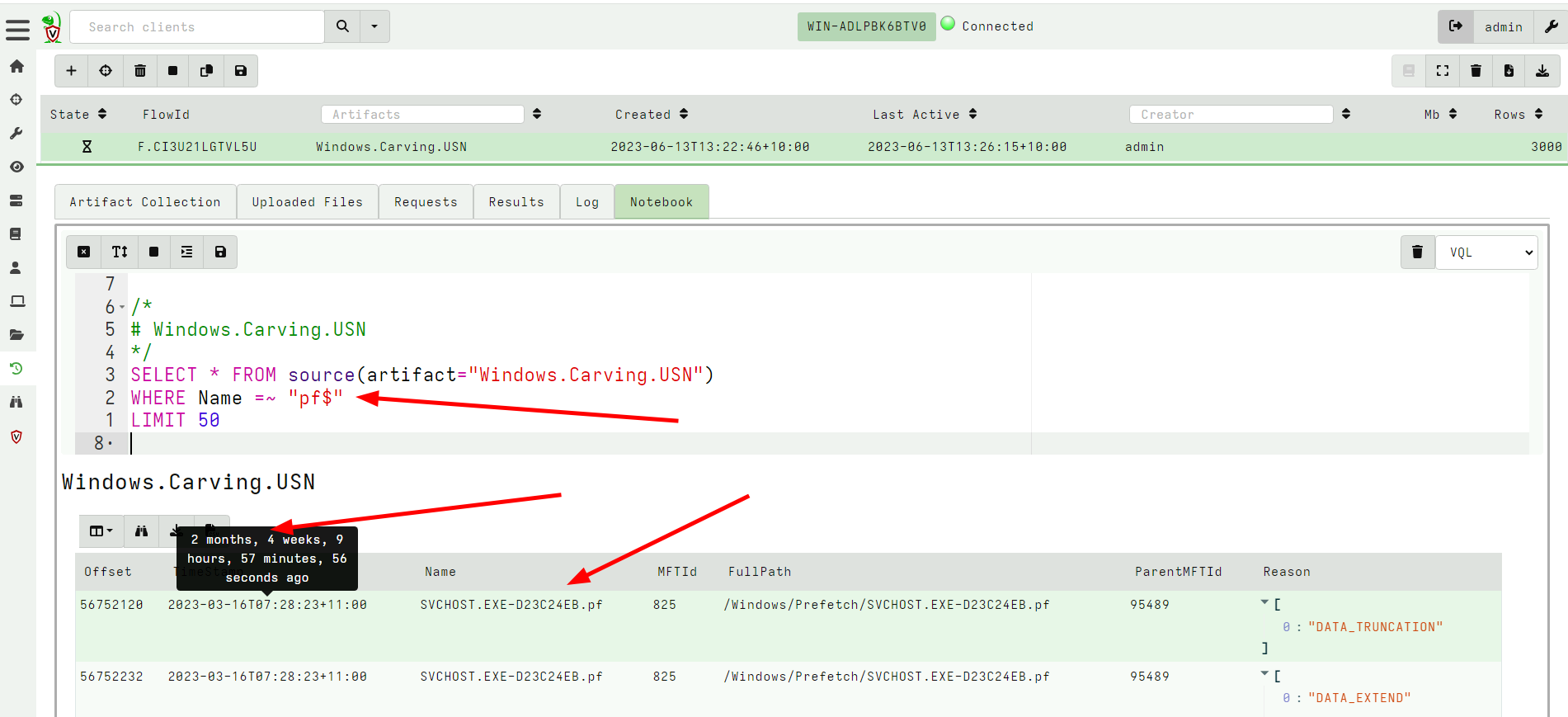

## The USN journal

* Update Sequence Number Journal or Change journal is maintained by
  NTFS to record filesystem changes.
* Records metadata about filesystem changes.
* Resides in the path $Extend\$UsnJrnl:$J

![](../../modules/ntfs_forensics/usnj.png)

---

## USN Journal
* Records are appended to the file at the end
* The file is sparse - periodically NTFS will remove the range at the start of the file to make it sparse
* Therefore the file will report a huge size but will actually only take about 30-40mb on disk.
* When collecting the journal file, Velociraptor will collect the sparse file.

---

## Exercise - Windows.Forensics.Usn

Target `C:\PerfLogs` with the `PathRegex` field.

* typically the USN journal only records filename and MFTId and
  ParentMFTId record. Velociraptor automatically reconstructs the
  expected path so the user can filter on path.
* This artifact uses FullPath results with “/”.

</div>
<div class="col">
  <img src="../../modules/ntfs_forensics/Windows.Forensics.USN.png" style="bottom: inherit" class="inset" />
</div>
</div>

---

## Exercise - UsnJ solution

* There are many entries even for a simple file action like download to disk.

![](../../modules/ntfs_forensics/USN_results.png)

---

## Exercise - UsnJ solution

* But these are simple to detect when you know what to look for!

![](../../modules/ntfs_forensics/USN_groupby.png)

</div>
<div class="col">

![](../../modules/ntfs_forensics/USN_delete.png)

</div>
</div>
</div>

---

## Advanced NTFS: Alternate Data Stream

* Most browsers attach an ADS to files downloaded from the internet.
* Use the VFS viewer to view the ADS of downloaded files.
* Use ADS Hunter to discover more interesting ADS
* Use `Windows.Analysis. EvidenceOfDownload` to identify downloaded
  files and unpacked ZIP files.

</div>
<div class="col">

</div>
</div>

Note:
 The inset shows typical frequency analysis of ADS naturally occurring

What is the `Wof` stuff? https://devblogs.microsoft.com/oldnewthing/20190618-00/?p=102597

## Volume Shadow Copies

NTFS allows for a special copy on write snapshot feature called
`Volume Shadow Copy`.

Create a VSS copy on your own machine using WMI:

```sh
wmic shadowcopy call create Volume='C:\'
```

Ensure your system contains a volume shadow copy
```bash
vssadmin list shadows
```

Note:

On Windows server OS you can use:
```bash
vssadmin create shadow
```

---

## NTFS accessor and VSS

* When a VSS copy is created, it is accessible via a special
  device. Velociraptor allows the VSS copies to be enumerated by
  listing them at the top level of the filesystem.

* At the top level, the accessor provides metadata about each device
  in the “Data” column, including its creation time. This is
  essentially the same output as vssadmin list shadows

---

### Velociraptor shows VSS at the top level of the filesystem

![](vss.png)

---

## Exercise: Find all VSS copies of the event logs

* We can glob the VSS just as if they were a directory
* Makes it easy to fetch every version of a certain file (e.g. a log file).

---

## Exercise: Find all VSS copies of the event logs

```
SELECT *
FROM glob(globs="/*/windows/system32/winevt/logs/system.evtx", accessor="ntfs")
```

![](evtx_in_vss.png)

</div>

---

## Carving The USN Journal

* The USN Journal is very useful to determine filesystem activities.
* However, it is normally limited to 30mb
* In practice the USN Journal rolls over quickly
* However, the journal is not overwritten!
* There is a large likelyhood that entries remain for a long time.

Lets carve them with `Windows.Carving.USN`

---

### Carving USN Journal can recover events in the distant past

![](carving_usnj.png)

# More about Accessors

## Accessing data in many ways.

---

## What is an accessor?

* Velociraptor offers many plugins that operate on file data.
* Sometimes file data is available in many different contexts.
* An `accessor` is a driver that presents data in the shape of a
  filesystem:
  * Hierarchical data can be searched using the `glob()` plugin.
  * Data can be opened using a filename just like a file.
  * The actual implementation of how to read the data is varied.
  * Accessors deal with `OSPath` objects.

---

## The OSPath object

* Consists of the following data points:
   * `Components`: Directories are represented as a series of
     components.
   * `Path`: The stringified version of the components above (using path separator etc).
   * `Type`: The type of the OSPath controls how to serialize and
     parse the Components into a string (e.g. path separator).
   * `DelegateAccessor`: Some accessors work on the output from other accessors.
   * `DelegatePath`: The Path that will be passed to the `DelegateAccessor`.

* Have convenience methods and behaviors:
   * Indexing or slicing the `OSPath` gets the indexed `Component`
   * Has `Base` and `Dir` methods
   * Addition with a string overloaded.

---

## Parsing a string into an OSPath

* Paths are strings that are interpreted by the `accessor` to
  reference a file or directory.
   * Accessors are free to interpret the string in whatever way they
     wish.

* Accessors consume a `OSPath` object and return `OSPath` objects.
* Within the query all paths are represented by `OSPath` objects.
* On the way in (via plugin args) or out (via JSON encoding) the
  `OSPath` objects are converted to strings.
* Use the `pathspec()` function to control parsing of strings more
  carefully.

---

## Exercise: Parsing paths

In a VQL notebook parse the following paths using the `pathspec()`
plugin:

* `/usr/bin/ls`
* `\\.\C:\Windows\Notepad.exe`
* `HKLM\Software\"http://www.google.com"\Some Key\Value`

---

## Exercise: Parsing paths

```sql
LET X = '''Path
/usr/bin/ls
\\.\C:\Windows\Notepad.exe
HKLM\Software\"http://www.google.com"\Some Key\Value
'''

SELECT pathspec(parse=Path, path_type="windows").Components,
       pathspec(parse=Path, path_type="ntfs").Components,
       pathspec(parse=Path, path_type="linux").Components,
       pathspec(parse=Path, path_type="registry").Components
FROM parse_csv(accessor="data", filename=X)
```

---

### Parsing paths

![](parsing_paths.png)

---

## Life of a Path

```
SELECT * FROM glob(globs="*", root='''\\.\C:\Windows''', accessor="ntfs")
```

1. The Glob plugin accepts a `pathspec` for the root parameter.
2. It is given a string `\\.\C:\Windows`.
3. `glob()` will now attempt to convert the string to an `OSPath`
   object. This depends on the accessor to interpret the data.
4. The `ntfs` accessor interprets the string into a list of path
   components: `\\.\C:`, `Windows`
5. The plugin will now list all the files in the directory using the
   `ntfs` accessor. For each file, we get an OSPath object.

---

## Exercise: OSPath operations

* The OSPath object can be used to manipulate paths
   * Useful methods: `Basename`, `Dirname`, `Components`
   * Adding components, indexing gets specific components.
   * Works for complex nested paths

```sql
LET ZipPath = "C:/Users/Administrator/Documents/test.docx"
SELECT OSPath,
  OSPath.Basename,  OSPath[0], OSPath.Components,
  OSPath.Dirname, OSPath.Dirname + "Hello.txt",
  OSPath.Path
FROM glob(globs="**",
    root=pathspec(DelegateAccessor="file", DelegatePath=ZipPath),
    accessor="zip")
```

---

### OSPath operations

![](ospath_operations.png)

---

## Basic accessors: file, auto

* We already encountered the `file` and `auto` accessors previously.
* Provide access to files.
* There are a number of different flavors:
    * A Windows path starts with a drive letter, or a device name, and
      uses `\` (preferred) or `/` for path separator.
    * Linux paths are rooted at `/`

---

## The data and scope accessors

* Velociraptor contains many plugins that read files via accessors
* Sometimes data is already available as a string.
* The `data` accessor allows VQL plugins to treat a string as a file.
   * The filename is taken as the content of the file.
* The `scope` accessor is similar
   * The filename is takes an the name of a scope variable that
     contains the data.
   * Useful for uploads as the original path is also sent

---

## The ZIP accessor

* Zip files are a common basis for many file formats
    * e.g. `docx`, `pptx`, `jar`, `odt`
* Velociraptor makes it easy to access using the `zip` accessor:
    * `Path`: Is the path within the zip file
    * `DelegateAccessor`: The zip accessor will use this to open the
      underlying file.
    * `DelegatePath`: The zip accessor will use this to open the
      underlying file.

---

## Exercise: Search a word document for a keyword

* Create a `docx` document using `wordpad`
* Apply the `glob()` plugin with the zip accessor to view all the files.
* Apply the `yara()` plugin to searh the content of the zip for a keyword.

---

## Solution: Search a word document for a keyword

```sql
LET ZipPath = "C:/Users/Administrator/Documents/test.docx"
LET Rule = '''
rule X {
    strings: $a="secret"
    condition: any of them
}
'''
SELECT * FROM foreach(row={
    SELECT * FROM glob(globs="**",
        root=pathspec(DelegateAccessor="file", DelegatePath=ZipPath),
        accessor="zip")
}, query={
    SELECT * FROM yara(rules=Rule, files=OSPath, accessor="zip")
})
```

</div>

---

## Exercise: Identify vulnerable Java programs

* Java programs can be compiled into a `JAR` file.
   * This is basically a zip file bundling all dependencies.
* Because dependencies are embedded in the JAR file:
   * If a library is compromised the entire program is still compromised
   * It is hard to know exactly which version of each library exists

* Write a VQL Artifact to detect JAR files that contain a particular
  set of hashs.

---

## Exercise: Identify vulnerable Java programs

* Download the vulnerable JAR from:

https://github.com/tothi/log4shell-vulnerable-app/releases

* Download vulnerable hashes from:

https://gist.github.com/xanda/7ac663984f3560f0b39b18437362d924

---

## Solution: Identify vulnerable Java programs

```
LET HashList = SELECT Content
FROM http_client(url="https://gist.github.com/xanda/7ac663984f3560f0b39b18437362d924/raw/79d765296634c0407db99763d0b2c7c318e30078/Vulnerable_JndiLookup_class_hashes.csv")

LET VulnHashes <=
  SELECT * FROM parse_csv(accessor="data", filename=HashList[0].Content)

LET VulnMD5 <= VulnHashes.md5sum
LET VulnMD5Regex <= join(array=VulnHashes.md5sum, sep="|")

SELECT * FROM foreach(row={
   SELECT OSPath AS JAR FROM glob(globs="C:/Users/Administrator/Downloads/*.jar")
}, query={
   SELECT JAR, OSPath.Path AS Member, Size, hash(accessor="zip", path=OSPath) AS Hash
   FROM glob(globs="**",
       root=pathspec(DelegatePath=JAR),
       accessor="zip")
})
WHERE Hash.MD5 =~ VulnMD5Regex  // OR Hash.MD5 IN VulnMD5
```

</div>

---

## Raw registry parsing

* In a previous exercise we looked for a key in the
  `HKEY_CURRENT_USER` hive.
* Any artifacts looking in `HKEY_USERS` using the Windows API are
  limited to the set of users currently logged in! We need to parse
  the raw hive to reliably recover all users.

* Each user’s setting is stored in:
      `C:\Users\<name>\ntuser.dat`

* It is a raw registry hive file format. We need to use `raw_reg`
  accessor.

The raw reg accessor uses a PathSpec to access the underlying file.

---

## Exercise: Repeat the Run/RunOnce example with raw registry.

```
LET RunGlob = '''SOFTWARE\Microsoft\Windows\CurrentVersion\Run\*'''

SELECT * FROM foreach(row={
  SELECT OSPath FROM glob(globs="C:/Users/*/NTUser.dat")
}, query={
  SELECT Name, Mtime, Data.value AS Data
  FROM glob(globs=RunGlob, accessor="raw_reg",
            root=pathspec(DelegatePath=OSPath))
})
```

</div>

---

## The process accessor: accessing process memory

* Velociraptor can read process memory using the `process` accessor
* Process memory is not contiguous - it is very sparse.
* Velociraptor handles the sparse nature automatically
   * The yara plugin automatically handles sparse regions
   * Upload plugin skips uploading unmapped memory

---

## Exercise: Write an artifact that uploads process memory

* Search for a keyword hit and upload the entire process memory if
  there is a hit.

* Option: Uses `procdump()` to get a Windows debugger compatible
     crashdump

* Option: Use `upload()` to get a Velociraptor sparse file.

---

## Exercise: Write an artifact that uploads process memory

* Using `proc_dump()`

```
SELECT * FROM foreach(row={
  SELECT Pid, Name
  FROM pslist() WHERE Name =~ "wordpad"
}, query={
  SELECT upload(file=FullPath) AS Upload, Name, Pid
  FROM proc_dump(pid=Pid)
})
```

</div>

---

## Exercise: Write an artifact that uploads process memory

* Using `upload()`

```
SELECT Pid, Name,
upload(accessor="process", file=str(str=Pid)) AS Upload
FROM pslist() WHERE Name =~ "wordpad"
```

</div>

---

## The sparse accessor

* Velociraptor can handle sparse files correctly.
* The `sparse` accessor allows you to create a sparse overlay over other data
   * Velociraptor will skip sparse regions when scanning or uploading
   * Useful when we want to avoid reading certain data
   * e.g. Memory scanning or Carving

```
FileName = pathspec(
      DelegateAccessor="data", DelegatePath=MyData,
      Path=[dict(Offset=0,Length=5), dict(Offset=10,Length=5)])
```

---

## Exercise: Upload only first 10k of each file.

* Write an artifact that uploads only the first 10kb of each file.

```
LET Globs = "C:/Users/*/Downloads/*"

SELECT OSPath, upload(accessor="sparse",
  file=pathspec(DelegatePath=OSPath,
                Path=[dict(offset=0, length=10000),]),
                name=OSPath) AS Upload
FROM glob(globs=Globs)
```
</div>

---

## The smb accessor

* It is possible to access a remote SMB server using the `smb` accessor.

* The accessor requires credentials for accessing the remote server.

* Credentials are provided via a scope parameter

```sql
LET SMB_CREDENTIALS <= dict(`192.168.1.11`="admin:password")

-- Or build from artifact args
LET SMB_CREDENTIALS <= set(item=dict(), field=ServerName,
  value=format(format="%s:%s", args=[Username, Password]))

```

---

## Exercise: Configuring an SMB share

* Configure an SMB share on your server and place a file there.
* Write a VQL query that searches the SMB share.

* See https://docs.velociraptor.app/docs/offline_triage/remote_uploads/#smb-share

```
LET SMB_CREDENTIALS <= dict(`192.168.1.112`="administrator:test!password")

SELECT *
FROM glob(globs="**", root="//192.168.1.112/uploads", accessor="smb")
WHERE OSPath =~ ".exe$"
```

</div>

# Parsing

## Processing and analyzing evidence on the endpoint

---

## Parsing evidence on the endpoint

* By analyzing files directly on the endpoint we can extract relevant
  data immediately.

* Velociraptor supports sophisticated parsing strategies that allow
  VQL artifacts to extract maximum details directly on the endpoint.

* Built in parsers (`parse_ntfs`, `parse_xml`, `parse_json`)
   * Text based parsers (`parse_string_with_regex`, `split`)
   * Binary parser

* By eliminating the need for post processing we can scale analysis
  across larger number of endpoints

---

## Built in parsers - SQLite

* SQLite is used in many contexts and many applications
* Velociraptor has a built in parser for SQLite that can be controlled
  via VQL.
   * If the SQLite file locked, Velociraptor with make a local copy!
* This allows Velociraptor to access many different types of evidence.

---

## Exercise: Parse the chrome Top Sites file

* Location is

```sh
C:\Users\*\AppData\Local\Google\Chrome\User Data\Default\Top Sites
```

* SQLite query to see the schema

```
SELECT * FROM sqlite_master
```

---

## Sqlite analysis

![](sqlite_analysis.png)

* Streamlined Artifact: https://github.com/Velocidex/SQLiteHunter

---

## Complex RegEx parsing

* Sometimes log files are less structured and a regex based approach
  is not reliable enough.

* In this case think about how to split the data in a reliable way and
  apply regular expressions multiple times.

* Divide and Concur

---

## Parsing with Regular Expressions

* Two main regex parsing tools:
   * `parse_records_with_regex()` splits text into larger "records"
   * `parse_string_with_regex()` extracts specific fields from each
     "record"

---

## Exercise: MPLogs

* [Mind the MPLog: Leveraging Microsoft Protection Logging for Forensic Investigations](https://www.crowdstrike.com/blog/how-to-use-microsoft-protection-logging-for-forensic-investigations/)

* MPLog files are found in `C:\ProgramData\Microsoft\Windows Defender\Support`
* Events described in [This Reference](https://learn.microsoft.com/en-us/microsoft-365/security/defender-endpoint/troubleshoot-performance-issues?view=o365-worldwide)

Write a VQL Parser to parse these logs.

---

## Steps for solution

1. Locate data from disk and split into separate log lines (records).
    * Use `glob()`, `parse_lines()` and `utf16()`

2. Find a strategy to parse each record:
    * Will one pass Regex work?
    * What is the structure of the line?
    * Use `split()`

3. This about how to present the data:
    * Dict addition to combine several fields.

---

## Possible solution

* Not really perfect because log is not very consistent.

```sql
LET LogGlob = '''C:\ProgramData\Microsoft\Windows Defender\Support\MPLog*.log'''

LET AllLines = SELECT * FROM foreach(row={
  SELECT utf16(string=read_file(filename=OSPath, length=10000000)) AS Data,
        OSPath
  FROM glob(globs=LogGlob)
}, query={
  SELECT Line, OSPath
  FROM parse_lines(filename=Data, accessor="data")
})

LET ParseData(Data) = to_dict(item={
  SELECT split(sep_string=":", string=_value)[0] AS _key,
         split(sep_string=":", string=_value)[1] AS _value
  FROM foreach(row=split(sep=", ", string=Data))
})

LET Lines = SELECT OSPath, Line,
   parse_string_with_regex(string=Line,
       regex="^(?P<Timestamp>[^ ]+) (?P<Data>.+)") AS P
FROM X
WHERE P.Timestamp

SELECT * FROM foreach(row={
   SELECT dict(Timestamp=P.Timestamp, _Line=Line, _OSPath=OSPath) +
          ParseData(Data=P.Data) AS Data
   FROM Lines
}, column="Data")
```

</div>

---

# The Binary Parser

---

## Parsing binary data

* A lot of data we want to parse is binary only
* Having a powerful binary parser built into VQL allows the VQL query
  to parse many more things!
* [VQL Binary parser](https://github.com/Velocidex/vtypes) is declerative.
   * Focus on **what** the data means not how to extract it.
   * Exact data layout is specified by a `Profile`

---

## What is binary data?

* Serialized representation of abstract data structures
* Declare the layout of the data and let the parser recover the data
  from the binary stream.

* Example: Parsing integers from binary stream.

```sql
LET Data = unhex(string="0102030405060708")
LET Parsed =  parse_binary(accessor="data", filename=Data, offset=4, struct="uint32")

SELECT Parsed, format(format="%#08x", args=Parsed)
FROM scope()
```

---

## Parsing a struct

* In practice most software arrange simple types into "records" or
  "structs". This lays the data in "fields"
* We can define a profile to interpret the binary data as fields.

```sql
LET Data = unhex(string="0102030405060708")
LET Profile = '''[
["Header", 12, [
  ["Field1", 0, "uint16"],
  ["Field2", 4, "uint32"]
]]]
'''

SELECT parse_binary(accessor="data", filename=Data, struct="Header", profile=Profile)
FROM scope()
```

---

## Parsing Structs

![](parsing_structs.png)

---

## Calculating fields

* In practice many fields, such as offsets or sizes are calculated
  based on the data.
  * Velociraptor supports these derived fields using `VQL Lambda`.
  * VQL Lambda is a function that receives the current struct as a
    parameter and returns a single value.
  * The calculated value will be used to parse the field.

```sql
LET Profile = '''[
["Header", 12, [
  ["OffsetOfField2", 1, "uint8"],
  ["Field2", "x=>x.OffsetOfField2 + 2", "uint32"]
]]]
'''
```

---

## Calculating fields

![](parsing_structs_derived_offset.png)

---

## Unsecured SSH keys

A common mechanism of privilege escalation is compromise of SSH keys without password
* Can be immediately leveraged to gain access to other hosts
* e.g. AWS by default does not have password!

</div>

![](ssh_keys_aws.png)

</div>
</div>

---

## Traditional approach

1. Collect all ssh private key files in the environment.

2. Store them in a central locations.

3. Run specialized parser to determine if they keys are protected

</div>

## Velociraptor approach

1. Write a (reusable) artifact to parse SSH private key files -
   determine if they are protected.

2. Hunt across the environment for unprotected files.

3. Remediate or focus on weak keys.

</div>
</div>

---

## How can I tell if a file is protected?
### Parsing SSH private key files.

* Private key files come in various formats and types
* Let's develop some VQL to parse it
* File format reference https://coolaj86.com/articles/the-openssh-private-key-format/

</div>
<div class="col">

![](ssh_keys_format.png)

</div>
</div>

---

## Exercise: Parse SSH Private keys

* Create some new ssh keys using `ssh-keygen`

![](ssh-keygen.png)

---

## Step 1: read the file.

```sql
LET Filename = '''C:\Users\Administrator/.ssh/id_rsa'''

SELECT read_file(filename=Filename) FROM scope()
```

![](read_ssh_keyfile.png)

</div>

---

## Step 2: Extract the base64 encoded part

* Using regular expressions we can isolate the base64 encoded data.
* Apply `base64decode()` to recover the binary data.
* What is the binary data though?
* Write a "Profile" and apply it to the binary data to extract fields.

```sql
LET Filename = '''C:\Users\Administrator/.ssh/id_rsa'''

LET Decoded(Filename) = base64decode(
    string=parse_string_with_regex(
        string=read_file(filename=Filename),
        regex="(?sm)KEY-----(.+)-----END").g1)

SELECT Decoded(Filename=Filename) FROM scope()
```

</div>

---

## Step 3: Binary parser built in VQL

* Declare struct layout as a data driven "profile".

```sql
LET SSHProfile = '''[
    ["Header", 0, [
      ["Magic", 0, "String", {
          "length": 100,
      }],
      ["cipher_length", 15, "uint32b"],
      ["cipher", 19, "String", {
          "length": "x=>x.cipher_length",
      }]
    ]]]
'''
```

</div>

* We can update the profile at any time without rebuilding the client.

---

### Step 4: Parse the header and find if the key is encrypted.

```sql
LET Filename = '''C:\Users\Administrator/.ssh/id_rsa'''
LET SSHProfile = '''[
        ["Header", 0, [
        ["Magic", 0, "String", {
            "length": 100,
        }],
        ["cipher_length", 15, "uint32b"],
        ["cipher", 19, "String", {
            "length": "x=>x.cipher_length",
        }]
      ]]]
      '''

LET Decoded(Filename) = base64decode(
    string=parse_string_with_regex(
      string=read_file(filename=Filename),
      regex="(?sm)KEY-----(.+)-----END").g1)

SELECT parse_binary(
         accessor="data",
         filename=Decoded(Filename=Filename),
         profile=SSHProfile,
         struct="Header") AS Parsed
FROM scope()
```

</div>

---

**Full SSH Private key parser**

*Uses binary parser, regular expression and file search*

![](private_key_artifact.png)

---

## Exercise:  Parsing root certificates in the registry

* Subverting the certificate root store is an effective technique to
  intercept encryption. https://attack.mitre.org/techniques/T1553/004/

![](mitre_cert_subversion.png)

---

## Exercise:  Parsing root certificates in the registry

* Root certs are stored in the registry as a binary blob.
* Inspect the binary data
* Parse the binary data https://blog.nviso.eu/2019/08/28/extracting-certificates-from-the-windows-registry/

```sql
LET ColumnTypes = dict(Blob="base64hex")

LET Glob = '''HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SystemCertificates\ROOT\Certificates\**\Blob'''

SELECT base64encode(string=Data.value) AS Blob
FROM glob(globs=Glob, accessor="registry")
```

---

## Solution

```sql
LET ColumnTypes = dict(Blob="base64hex")
LET Glob = '''HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SystemCertificates\ROOT\Certificates\**\Blob'''

LET profile = '''[
["Record", "x=>x.Length + 12", [
  ["Type", 0, "uint32"],
  ["Length", 8, "uint32"],
  ["Data", 12, "String", {
      length: "x=>x.Length",
      term: "",
  }],
  ["UnicodeString", 12, "String", {
      encoding: "utf16",
  }]
]],
["Records", 0, [
  ["Items", 0, "Array", {
      type: "Record",
      count: 20,
      sentinel: "x=>x.Length = 0",
  }]
]]
]'''

SELECT OSPath, Certificate FROM foreach(row={
  SELECT OSPath,
    base64encode(string=Data.value) AS Blob,
    parse_binary(accessor="data", filename=Data.value, profile=profile, struct="Records") AS Parsed
  FROM glob(globs=Glob, accessor="registry")
}, query={
  SELECT OSPath, parse_x509(data=Data)[0] AS Certificate
  FROM foreach(row=Parsed.Items)
  WHERE Type = 32
})
WHERE Certificate
```

</div>

---

## Parsing the trusted certificates from the registry

![](parsing_certificates_from_registry.png)

# Timelines

## Combining different sources of information

---

## What is a timeline?

* It is a way to visualize time based rows from multiple sources.
* The main concepts:
    * `Timeline`: Just a series of rows keyed on a time column. The
      rows can be anything at all, as long as a single column is
      specified as the time column and it is sorted by time order.
    * `Super Timeline`: A grouping of several timelines viewed
      together on the same timeline.

---

## Timeline workflow

* Timelines are created from post processed results from the notebook:
    1. Collect a set of artifacts with relevant information:
       * e.g. MFT entries, Prefetch, Event logs etc.
    2. Create a `Supertimeline` to hold all the timelines together.
    3. Reduce the data from each artifact source by manipulating the
       VQL query:
       * Reduce the number of rows by limiting only interesting rows.
       * Reduce the columns by adding only important columns.
    4. Add the table to the `Super Timeline` by selecting the time
       column.

---

## Example: Correlating execution with files

* Run the following command:
```
curl.exe -o test.ps1 https://www.google.com/
```

* Collect two sources of evidence:
   * `Windows.Timeline.Prefetch`: Collects execution times.
   * `Windows.NTFS.MFT`: Collects filesystem information.
* For the sake of the exercise, limit times to the previous day or so.

---

### Example: Correlating execution with files

![](collecting_prefetch_and_mft.png)

---

### Example: Correlating execution with files

* We want to reduce the total data in each table to make it easier to see.
   * Usually a time column and a single other column

![](reducing_table_for_timeline.png)

---

### Example: Correlating execution with files

![](reducing_table_for_timeline_2.png)

---

### Example: Correlating execution with files

* Create a super timeline to hold the individual timelines.

![](add_super_timeline.png)

---

### Example: Correlating execution with files

![](new_empty_timeline.png)

![](adding_timeline.png)

---

### Example: Correlating execution with files

* Investigating temporal correlation

![](temporal_correlation.png)
